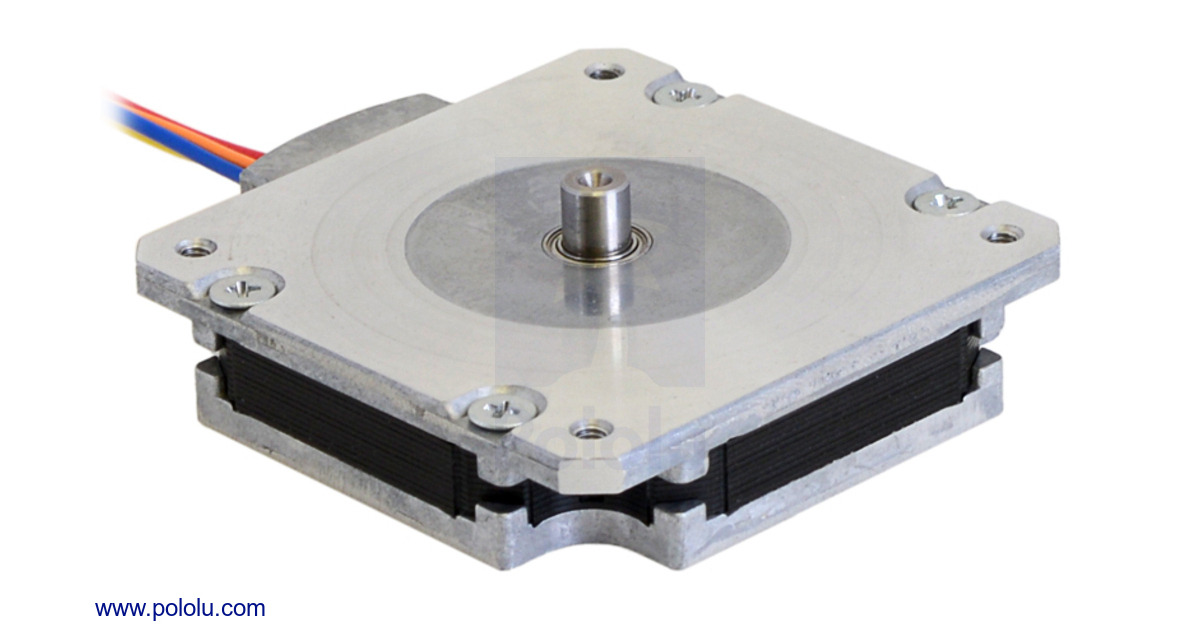

Sanyo Pancake Stepper Motor: Bipolar, 200 Steps/Rev, 50×11mm, 4.5V, 1 A/Phase
$ 67.46
This pancake bipolar stepping motor from Sanyo has a 1.8° step angle (200 steps/revolution). It offers a holding torque of 1 kg-cm (14 oz-in), and each phase draws 1 A at 4.5 V. This stepper motor’s flat profile (16 mm including the shaft) allows it to be used in places where more traditional stepper motors would be too bulky.
Related products
-

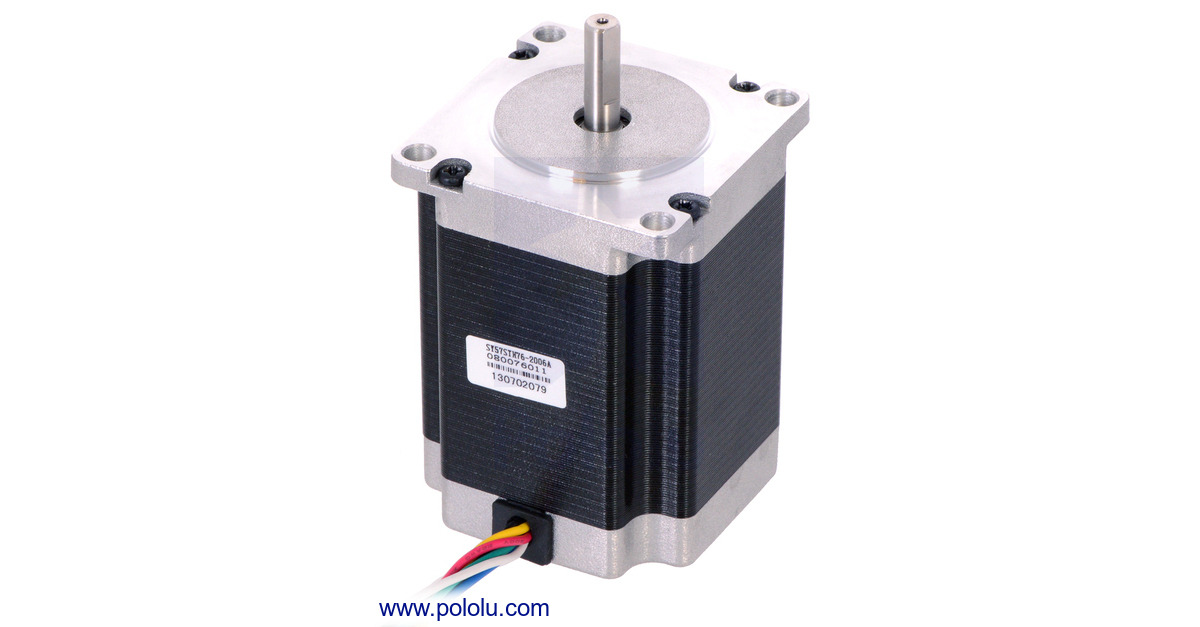

Stepper Motor: Unipolar/Bipolar, 200 Steps/Rev, 57×76mm, 4.5V, 2 A/PhaseSelect options
This product has multiple variants. The options may be chosen on the product page
-

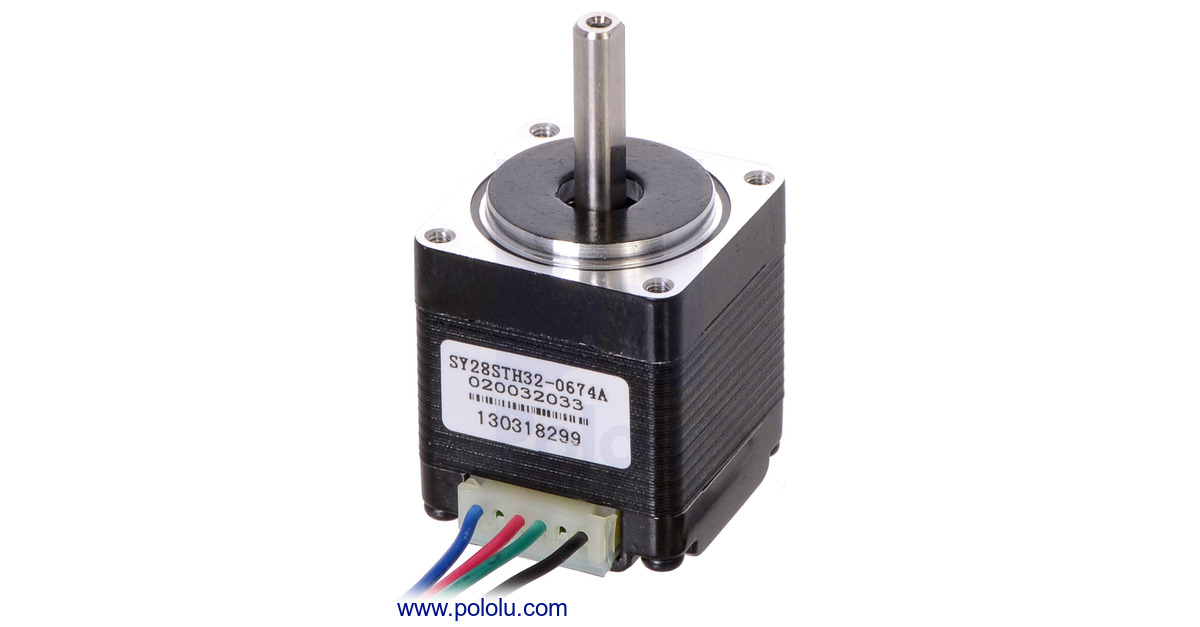

Stepper Motor: Bipolar, 200 Steps/Rev, 28×32mm, 3.8V, 0.67 A/PhaseSelect options
