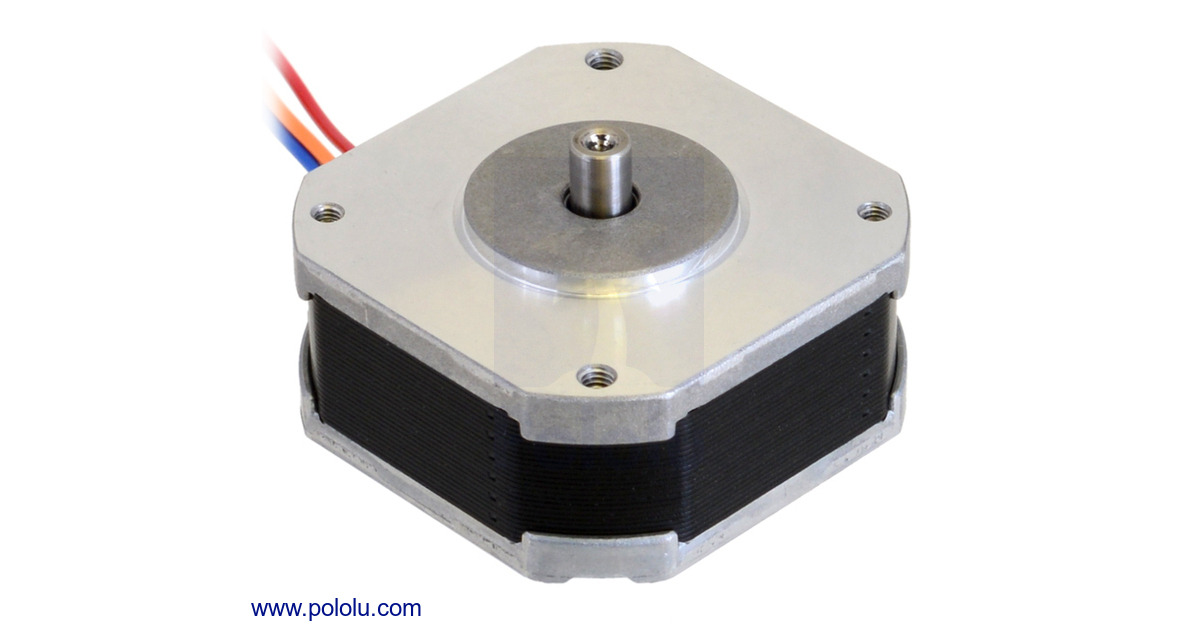

Sanyo Pancake Stepper Motor: Bipolar, 200 Steps/Rev, 42×18.6mm, 5.4V, 1 A/Phase
$ 74.20
This NEMA 17-size pancake bipolar stepping motor from Sanyo has a 1.8° step angle (200 steps/revolution). It offers a holding torque of 1.9 kg-cm (26 oz-in), and each phase draws 1 A at 5.4 V. This stepper motor’s flat profile (25.6 mm including the shaft) allows it to be used in places where more traditional stepper motors would be too bulky.
